Maximum working pressure 210 bar. Test pressure 300 bar unless otherwise stated. All cylinders can be used as Double Acting OR Single Acting pull / Single Acting push. Cylinders can be supplied with sintered bronze breathers fitted to ports for single acting applications. Cylinder material: ST52.3 DOM and CDS tube DIN2393 I.S.O. H8 & H9 Rod material: Standard Grade EN8 DIN UNI CK45, Hard Chrome Plated, minimum 25 microns Alternative rod materials available: Chrome plated Stainless Steel grades 431S29T / 316 / 304; NIKROM 350 Headbush material: Cast Iron - UNI5007–G25 unless otherwise stated Bore diameters available from 25mm to 250mm. 350 bar Heavy Duty range of cylinders and alternative rod and bore combinations available.

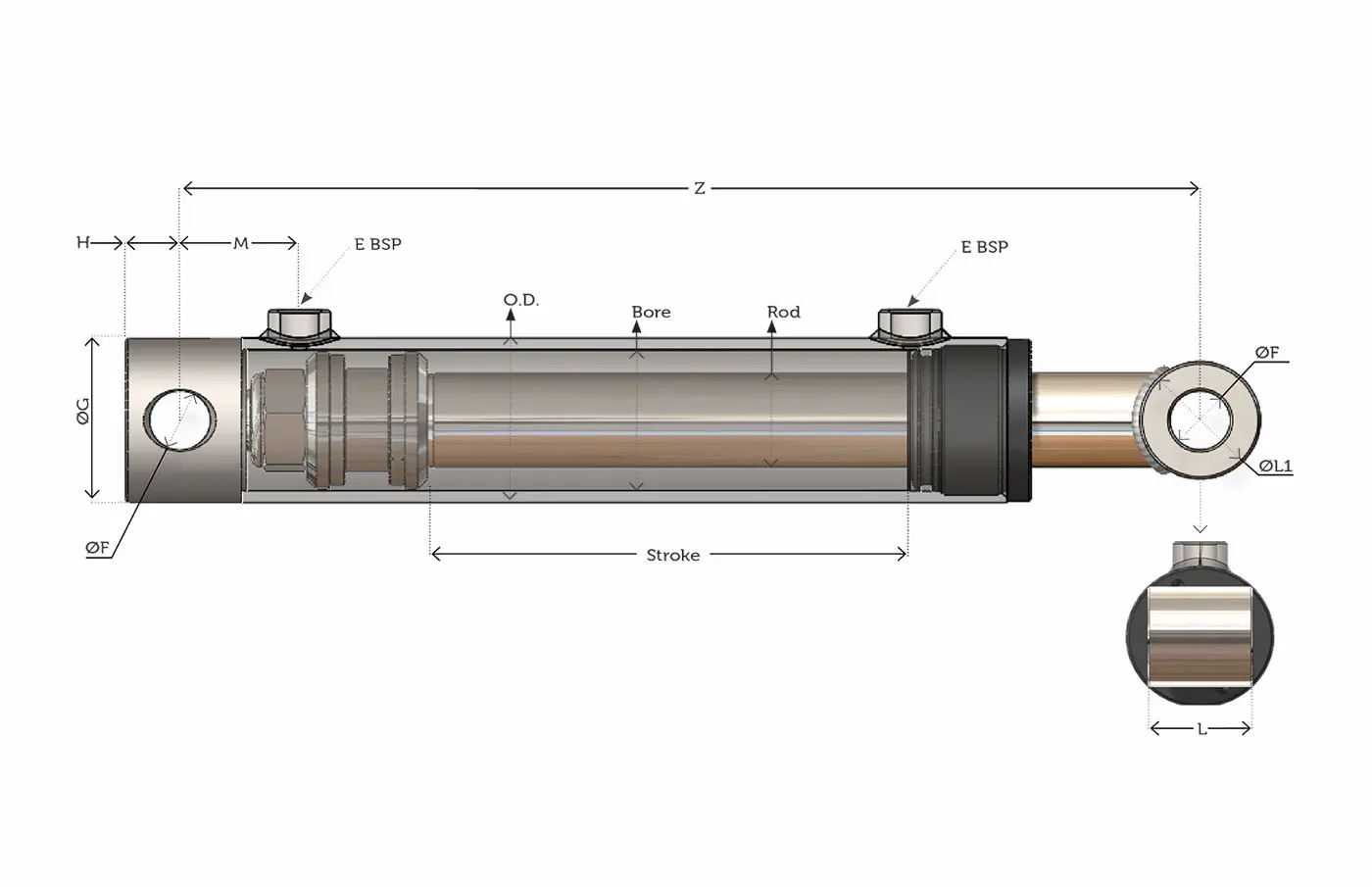

Data given illustrates standard sizes. Bespoke manufacturing options are always available, call or email for further details.
All data is given in good faith but without responsibility and may be subject to change without notice, all dimensions in mm.
All of our products are supplied with,

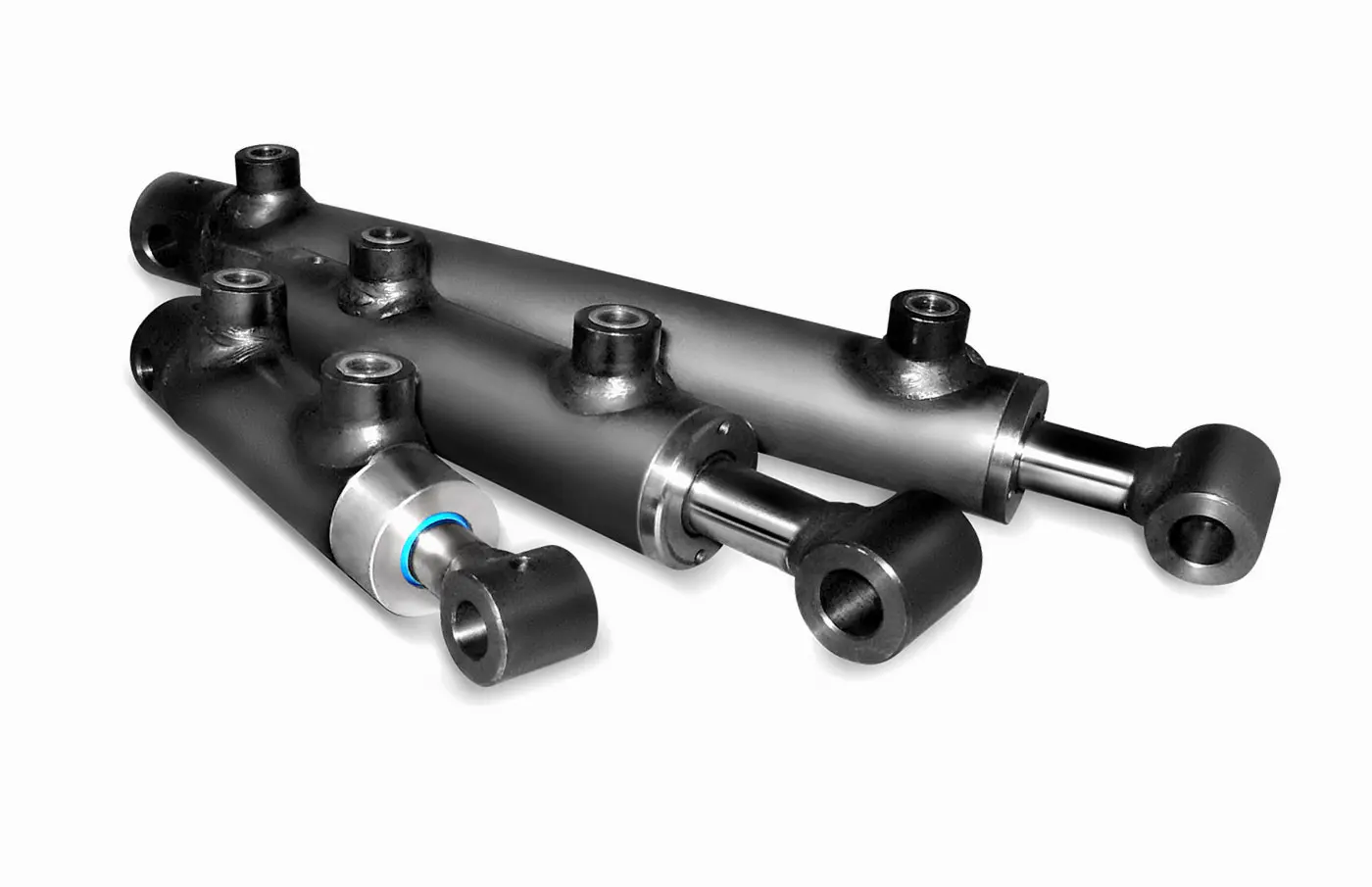

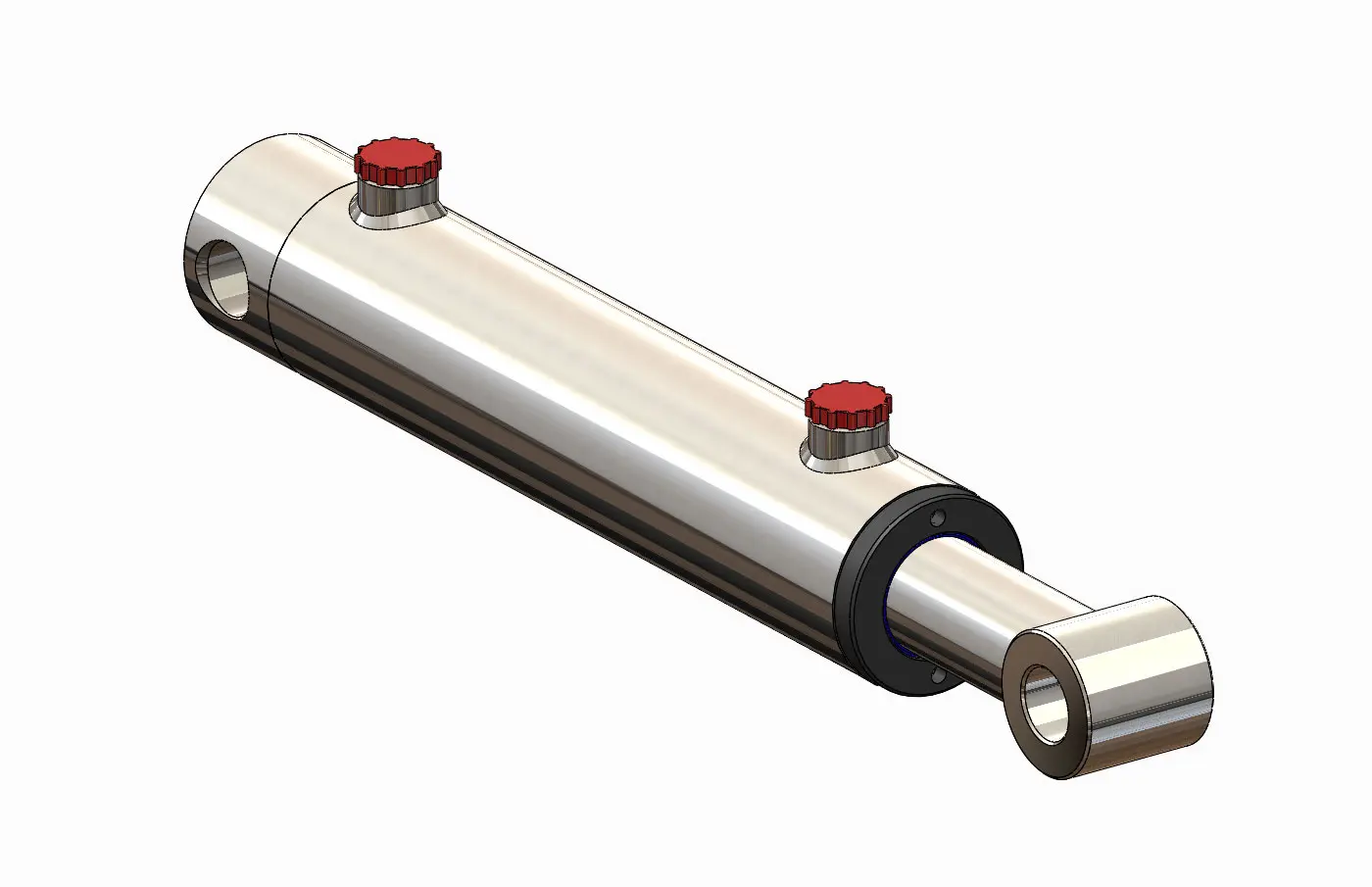

Compact stock cylinder range with 16mm rod, 35mm outside diameter and strokes up to 200mm.
General purpose stock cylinder range with 20mm rod, 42mm outside diameter and strokes up to 500mm.
Medium duty stock cylinder range with 25mm rod, 50mm outside diameter and strokes up to 800mm.
Robust stock cylinder range with 30mm rod, 60mm outside diameter and strokes up to 1000mm.
Heavy duty stock cylinder range with 30mm or 35mm rod, 70mm outside diameter & strokes up to 1000mm.
Larger stock cylinder range with 40mm rod, 80mm outside diameter and strokes up to 900mm.
High capacity stock cylinder range with 40mm rod, 92mm outside diameter and strokes up to 1000mm.
Largest stock cylinder range with 50mm rod, 115mm outside diameter and strokes up to 1000mm.
